Lecture 1: Basic Concepts in Reinforcement Learning

Contents

• First, introduce fundamental concepts in RL by examples.
• Second, formalize the conceptts in the context of Markov decision process.

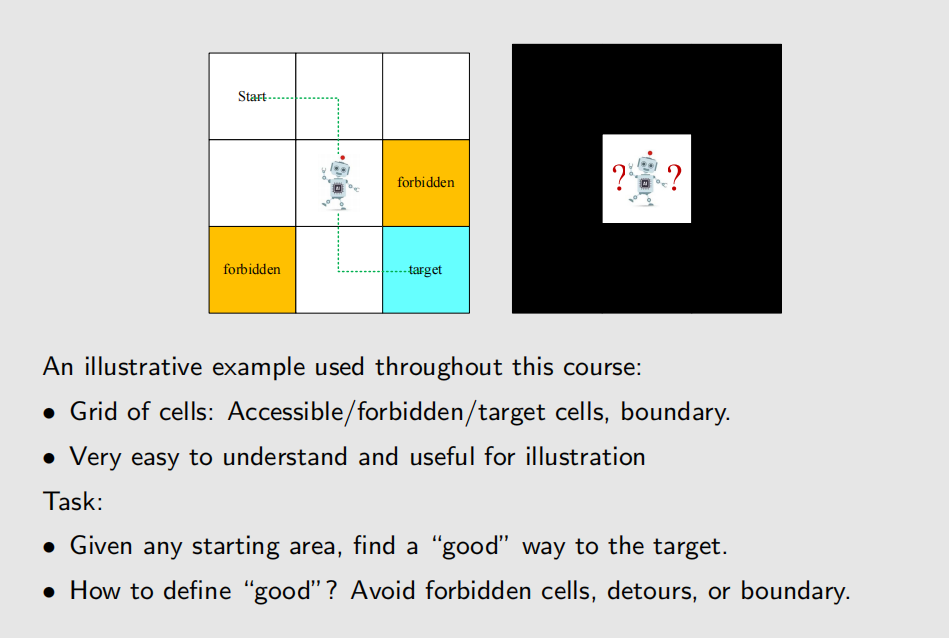

A grid-world example

State

State: The status of the agent with respect to the environment

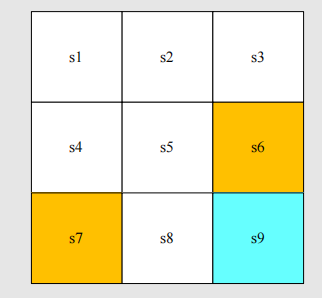

• 针对于 grid-world 示例，state 指的是 location，如下图中一共有 9 个 location，也就对应了 9 个 state。

State space: The set of all states $\mathbb{S} = {s_i}^{9}_{i=1}$.

Action

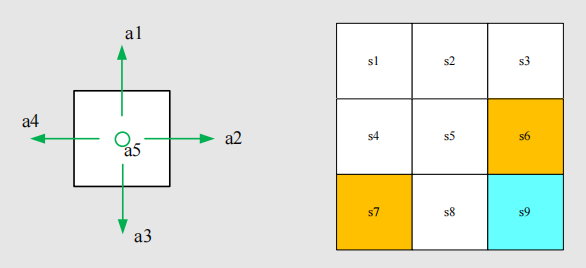

Action: For each state, there are five possible actions: $a_1, \cdots, a_5$.

• $a_1$: move upwards
• $a_2$: move rightwards
• $a_3$: move downwards
• $a_4$: move leftwards
• $a_5$: stay in the same location

Action space: The set of all actions $\mathbb{A} = {a_i}^{5}_{i=1}$.

Question: Can different states have different sets of actions?

State transition

When taking an action, the agent may move from one state to another. Such a process is called state transition.

• At state $s_1$, if we choose action $a_2$, then what is the next state?

  $$s_1 \xrightarrow{a_2} s_2$$

• At state $s_1$, if we choose action $a_1$, then what is the next state?

  $$s_1 \xrightarrow{a_1} s_1$$

• State transition defines the interaction with the environment.
• Question: Can we define the state transition in other ways?
  • Yes

Forbidden area: At state $s_5$, if we choose action $a_2$, then what is the next state?

• Case1: the forbidden area is accessible but with penalty. Then,

  $$s_5 \xrightarrow{a_2} s_6$$

• Case2: the forbiden area is inaccessible (e.g. surrounded by a wall).Then,

  $$s_5 \xrightarrow{a_2} s_5$$

We consider the first case, which is more general and challenging.

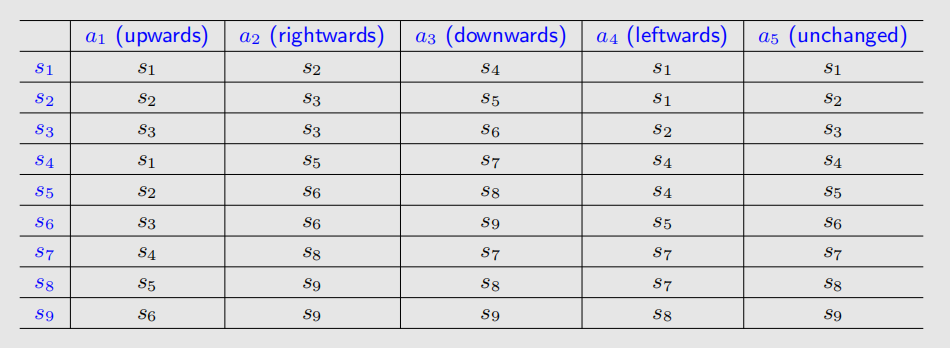

Tabular representation: We can use a table to describe the state transition:

Can only represent deterministic cases.

State transition probability: Use probability to describe state transition!

• Intuition: At state $s_1$, if we choose action $a_2$, the next state is $s_2$.
• Math:
  $P(s_2 | s_1, a_2) = 1$
  $P(s_1 | s_1, a_2) = 0$

Here it is a deterministic case. The state transition could be stochastic (for example, wind gust).

Policy

Policy tells the agent whay actions to take at a state.

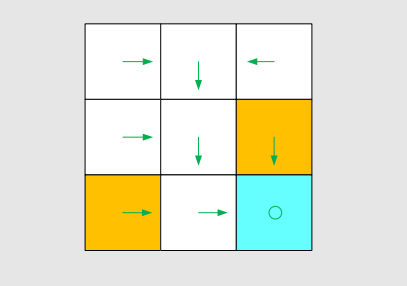

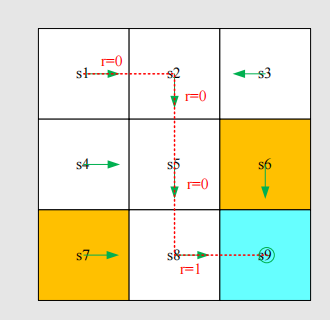

Intuitive representation: The arrows demonstrate a policy.

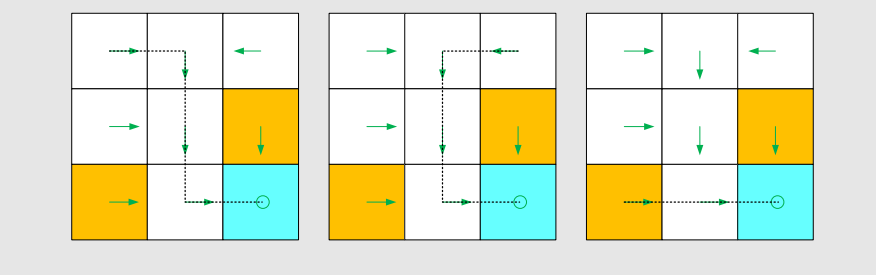

Based on this policy, we get the following paths with different starting points.

Mathmatical representation: using conditional probability
For example, for state $s_1$ :

$$\begin{aligned} \pi(a_1|s_1) &= 0 \\ \pi(a_2|s_1) &= 1 \\ \pi(a_3|s_1) &= 0 \\ \pi(a_4|s_1) &= 0 \\ \pi(a_5|s_1) &= 0 \\ \end{aligned}$$

It’s a deterministic policy.

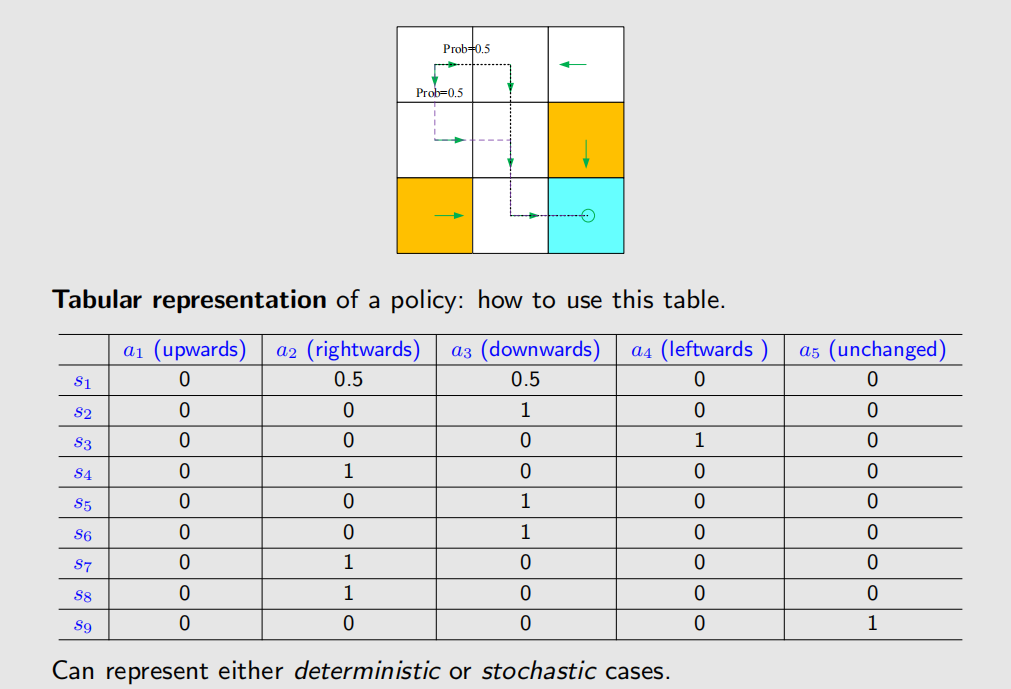

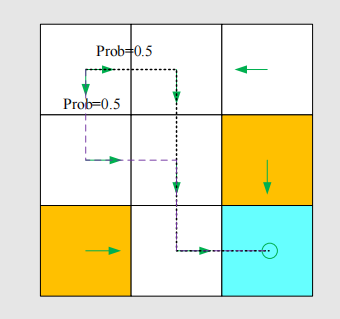

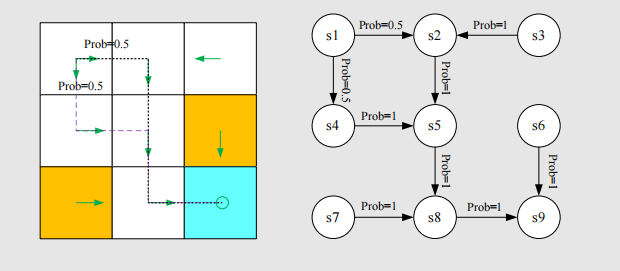

There are stochastic policies.

For example:

In this policy, for $s_1$:

$$\begin{aligned} \pi(a_1|s_1) &= 0 \\ \pi(a_2|s_1) &= 0.5 \\ \pi(a_3|s_1) &= 0.5 \\ \pi(a_4|s_1) &= 0 \\ \pi(a_5|s_1) &= 0 \\ \end{aligned}$$

这种表格非常的 general，我们可以用它来描述任意的 policy。

在编程中如何实现概率表达呢，我们可以选取一个采样区间 [0,1]：

• if $x \in [0, 0.5)$, take action $a_1$;
• if $x \in [0.5, 1]$, take action $a_2$;

Reward

Reward is one of the most unique concepts of RL.

Reward: a real number we get after taking an action.

• A positive reward represents encouragement to take such actions.
• A negative reward represents punishment to take such actions.

Questins:

• What about a zero reward?
  • No punishment.
• Can positive mean punishment?
  • Yes.

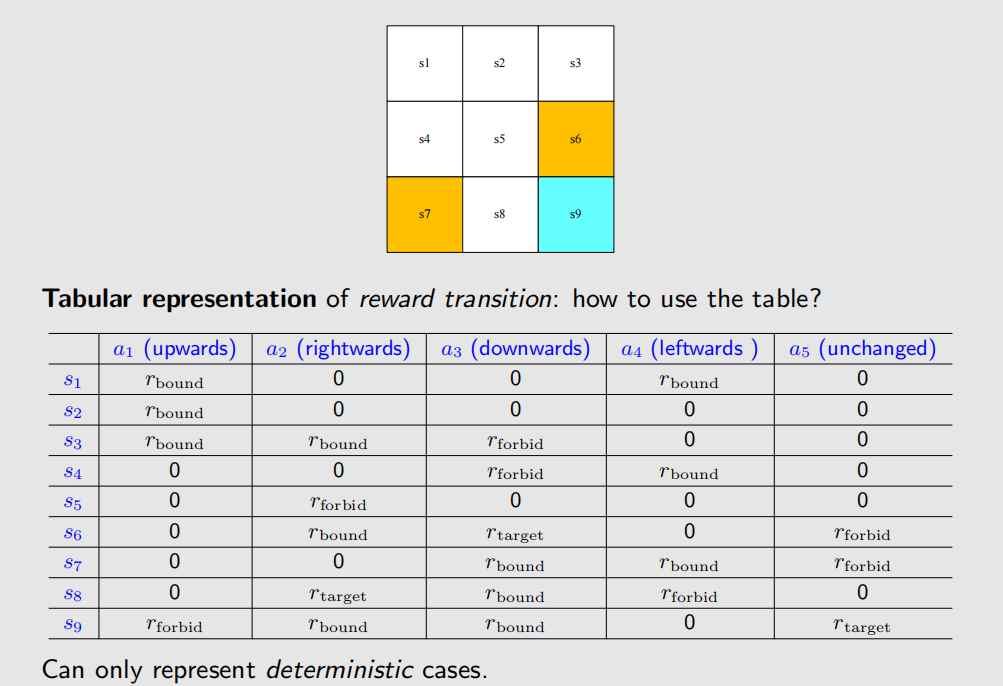

In the grid-world example, the rewards are designed as follows:

• If the agent attemps to get out of boundary, let $r_{bound} = -1$
• If the agent attemps to enter a forbidden cell, let $r_{forbid} = -1$
• If the agent reches the target cell, let $r_{target} = +1$
• Otherwise, the agent gets a reward of $r = 0$.

Reward can be interpreted as a human-machine interface, with which we can guide the agent to behave as what we expect.

For example, with the above designed rewards, the agent will try to avoid getting out of the boundary or stepping into the forbidden cells.

Mathematical description: conditional probability

• Intuition: At state $s_1$, if we choose action $a_1$, the reward is $-1$.
• Math: $p(r = -1|s_1, a_1) = 1$ and $p(r \neq -1|s_1, a_1) = 0$

Remarks:

• Here it is a deterministic case. The reward transition could be stochastic.
• For example, if you study hard, you will get rewards. But how much is uncertain.
• The reward depends on the state and action, but not the next state (for example, consider $s_1,a_1$ and $s_1,a_5$).

Trajectory and return

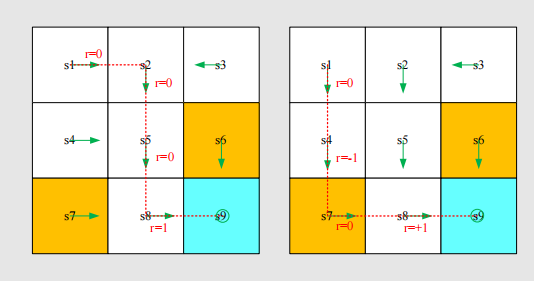

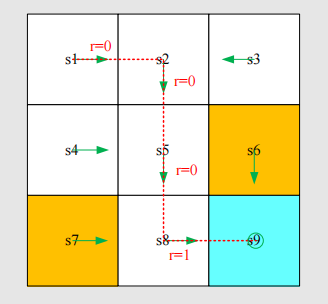

A trajectory is a state-action-reward chain:

$$S_1 \xrightarrow[{r=0}]{a_2} S_2 \xrightarrow[{r=0}]{a_3} S_5 \xrightarrow[{r=0}]{a_3} S_8 \xrightarrow[{r=1}]{a_2} S_9$$

The return of this trajectory is the sum of all the rewards collected along the trajectory:

$$return = 0 + 0 + 0 + 1 = 1$$

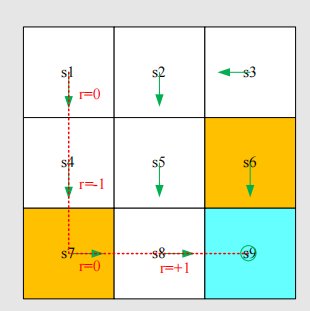

A different policy gives a different trajectory:

$$S_1 \xrightarrow[{r=0}]{a_3} S_4 \xrightarrow[{r=-1}]{a_3} S_7 \xrightarrow[{r=0}]{a_2} S_8 \xrightarrow[{r=+1}]{a_2} S_9$$

The return of this path is:

$$return = 0 + (-1) + 0 + 1 = 0$$

Which policy is better?

• Intuition: the first is better, because it avoids the forbidden areas.
• Mathematics: the first one is better, since it has a greater return!
• Return could be used to evaluate whether a policy is good or not (see details in the next lecture)!

Discounted return

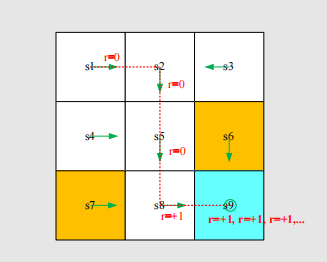

A trajectory may be infinite:

$$S_1 \xrightarrow{a_2} S_2 \xrightarrow{a_3} S_5 \xrightarrow{a_3} S_8 \xrightarrow{a_2} S_9 \xrightarrow{\color{red}{a_5}} \color{red}{S_9} \xrightarrow{\color{red}{a_5}} \color{red}{S_9} \cdots$$

The return is

$$return = 0 + 0 + 0 + 1 + 1 + 1 + ... = \infty$$

The definition is invalid since the return diverges!

Need to introduce a discount rate $\gamma \in [0,1)$

Discounted return:

$$\begin{aligned} discounted\ return &= 0 + \gamma 0 + \gamma^2 0 +\gamma^3 1 + \gamma^4 1 + \gamma^5 + \cdots \\ &= \gamma^3 (1 + \gamma + \gamma^2 + \gamma^3 + \cdots) \\ &= \gamma^3 (\frac{1}{1 - \gamma}) \end{aligned}$$

Roles:

1. The sum becomes finite.
2. Balance the far and near future rewards.

Explanation:

• If $\gamma$ is close to 0, the value of the discounted return is dominated by the rewards obtained in the near future.
• If $\gamma$ is close to 1, the value of the discounted return is dominated by the rewards obtained in the far future.
• 简而言之，如果 $\gamma$ 比较小，那 discounted return 比较近视；如果 $\gamma$ 比较大，那 discounted return 比较远视。

Episode

强化学习（Reinforcement Learning）中，episode 是一个核心概念，指的是智能体（agent）与环境（environment）交互的完整序列，从初始状态开始，到终止状态（terminal state）结束，期间不会被打断。
序列构成：一个 episode 由 状态（state）→ 行动（action）→ 奖励（reward）→ 下一状态（next state） 的循环组成，直到触发终止条件（例如游戏结束、任务完成等）

When interacting with the environment following a policy, the agent may stop at some terminal state. The resulting trajectory is called an episode (or a trial).

Example: episode

$$S_1 \xrightarrow[{r=0}]{a_2} S_2 \xrightarrow[{r=0}]{a_3} S_5 \xrightarrow[{r=0}]{a_3} S_8 \xrightarrow[{r=1}]{a_2} S_9$$

An episode is usually assumed to be a finite trajectory. Tasks with episodes are called episodic tasks.

Some tasks may have no terminal states, meaning the interaction with the environment will never end. Such tasks are called continuing tasks.

In the grid-world example, should we stop after arriving the target?

In fact, we can treat episodic and continuing tasks in a unified mathematical way by converting episodic tasks to continuing tasks.

• Option 1: Treat the target state as a special absorbing state. Once the agent reaches an absorbing state, it will never leave. The consequent rewards $r = 0$.
• Option 2: Treat the target state as a normal state with a policy. The agent can still leave the target state and gain $r = +1$ when entering the target state.

We consider option 2 in this course so that we don’t need to distinguish the target state from the others and can treat it as a normal state.

Markov decision process (MDP)

Key elements of MDP:

• Sets:
  • State: the set of states $\mathbb{S}$.
  • Action: the set of actions $\mathbb{A}(s)$ is associated for state $s \in \mathbb{S}$.
  • Reward: the set of rewards $\mathbb{R}(s,a)$.
• Probability distribution:
  • State transition probability: at state $s$, taking action $a$, the probability to transit to state $s'$ is $p(s'|s,a)$
  • Reward probability: at state $s$, taking action $a$, the probability to get reward $r$ is $p(r|s,a)$
• Policy: at state $s$, the probability to choose action $a$ is $\pi(a|s)$
• Markov property: memoryless property

  $$p(s_{t+1}|a_t,s_t,\cdots,a_0,s_0) = p(s_{t+1}|a_t,s_t)$$

  $$p(r_{t+1}|a_t,s_t,\cdots,a_0,s_0) = p(r_{t+1}|a_t,s_t)$$

All the concepts introduced in this lecture can be put in the framework in MDP.

The grid world could be abstracted as a more general model, Markov process.

The circle represent states and the links with arrows represent the state transition.

Markov decision process becomes Markov process once the policy is given.

MDP VS MP

马尔科夫过程(Markov Process, MP)和马尔科夫决策过程(Markov Decision Process, MDP)是强化学习中的两个核心概念，它们之间存在重要的区别：

马尔科夫过程 (Markov Process, MP)

马尔科夫过程是一个二元组 $(S, P)$，其中：

• $S$ 是状态空间
• $P$ 是状态转移概率矩阵

特点：

• 被动性：系统状态的转移是自动发生的，没有外部决策者的干预
• 随机性：状态转移完全由概率决定
• 马尔科夫性：下一个状态只依赖于当前状态，与历史无关

数学表达：

$$P(S_{t+1} = s' | S_t = s, S_{t-1} = s_{t-1}, \ldots, S_0 = s_0) = P(S_{t+1} = s' | S_t = s)$$

马尔科夫决策过程 (Markov Decision Process, MDP)

马尔科夫决策过程是一个四元组 $(S, A, P, R)$，其中：

• $S$ 是状态空间
• $A$ 是动作空间
• $P$ 是状态转移概率矩阵（依赖于动作）
• $R$ 是奖励函数

特点：

• 主动性：存在决策者（智能体）可以选择动作
• 目标导向：通过奖励机制引导决策
• 策略依赖：状态转移依赖于所选择的动作

数学表达：

$$P(S_{t+1} = s' | S_t = s, A_t = a) = P_{ss'}^a$$

$$R(S_t = s, A_t = a, S_{t+1} = s') = R_{ss'}^a$$

主要区别对比

特征	马尔科夫过程 (MP)	马尔科夫决策过程 (MDP)
决策能力	无决策者，被动观察	有智能体主动决策
动作空间	无动作概念	有明确的动作空间 $A$
状态转移	$P(s'|s)$	$P(s'|s,a)$
奖励机制	无奖励	有奖励函数 $R(s,a,s')$
优化目标	无优化目标	最大化累积奖励
应用场景	系统建模、概率分析	强化学习、决策优化

关系总结

• MP是MDP的特殊情况：当MDP中只有一个动作可选时，MDP退化为MP
• MDP扩展了MP：在MP基础上增加了动作选择和奖励机制
• 从描述到控制：MP描述系统行为，MDP控制系统行为

Summary

By using grid-world examples, we demonstrated the following key concepts:

• State
• Action
• State transition, state transition probability $p(s'|s,a)$
• Reward, reward probability $p(r|s,a)$
• Trajectory, episode, return, discounted return
• Markov decision process
